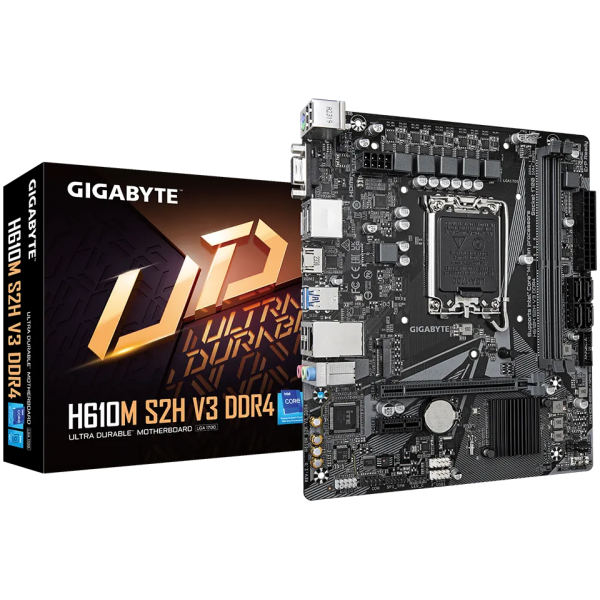

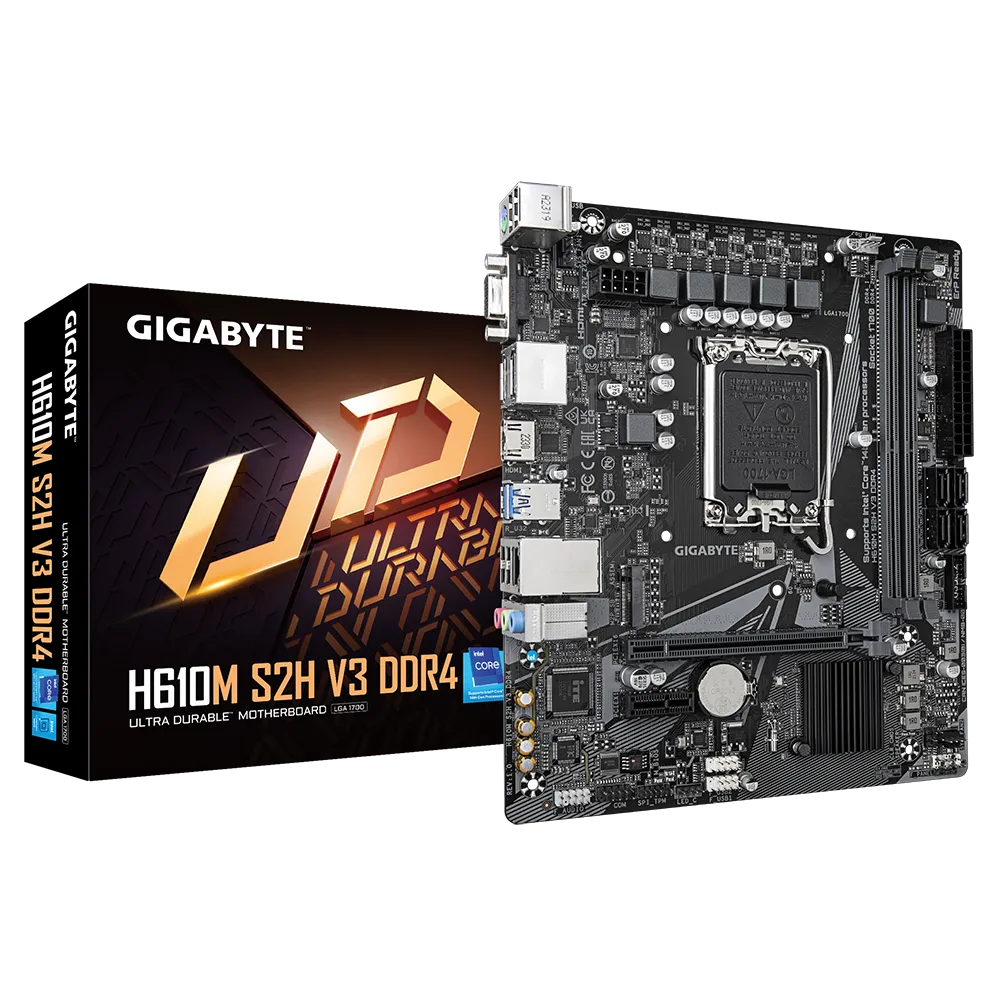

GIGABYTE H610M S2H V3 DDR4, DDR4, SATA3, HDMI, USB3.2Gen1, LGA1700 mATX

Opis

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 12/13Gen Intel Core i9/i7/i5/i3 / Intel Pentium / Intel Celeron
FORMAT: Micro ATX Form Factor 22.3cm x 19.3cm
VEZNI ČIP: Intel H610
POMNILNIK:
2 x DDR4 DIMM (do 3200/3000/2933/2666/2400/2133MHz) do skupno 64GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora
GRAFIKA: DA – preko CPU
RAID: NE
RAZŠIRITVENE REŽE:
1 x PCI Express x16
1 x PCI Express x1
MREŽNA KARTICA: Realtek LAN chip (10/100/1000 Mbit)
ZVOČNA KARTICA: Realtek audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
– @BIOS
– EasyTune
– Smart Backup
– System Information Viewer
Support for Q-Flash
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/H610M-S2H-V3-DDR4-rev-10#kf

Garancija: 36 mesecev
